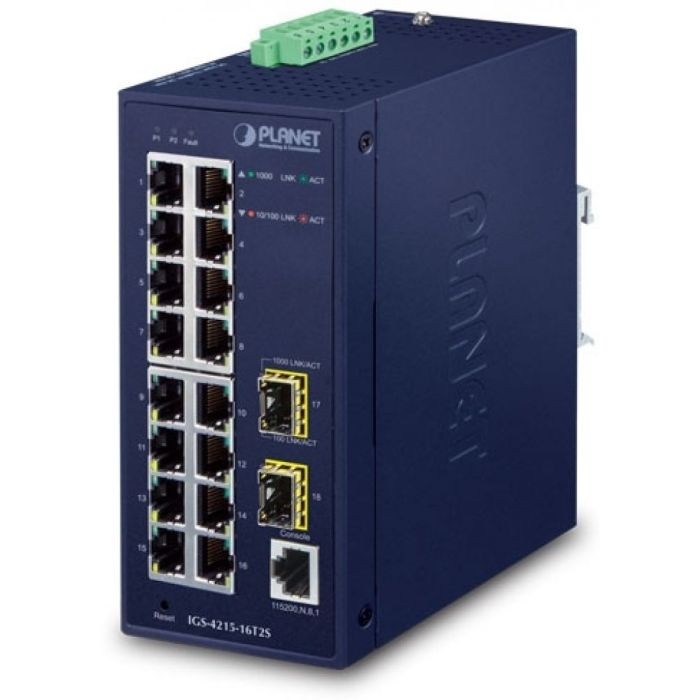

Planet 10/100/1000T + 2-P 100/1000x
Navigeren door de galerijafbeeldingen is mogelijk met de linker- en rechterpijltjestoetsen.
calcActive())">
Artikelnummer: 4778266
Stapelkorting
431,27
Incl. 21% BTW
356,42
Excl. 21% BTW
Excl. BTW:
Toevoegen aan
2-3 werkdagen
Raalte:
Niet voorradig
Leverancier:
3 stuk(s) voorradig
Productspecificaties
Productspecificaties
Algemeen |
|
|---|---|
| EAN | 4711605284899 |
| Fabrikantcode | IGS-4215-16T2S |
| Artikelnummer | 4778266 |
| Merk | ASSMANN |
| Link naar fabrikant |
Beheerfuncties |
| Switch type | Managed |
| Switch-laag | L2/L4 |
| Quality of Service (QoS) | Ja |
| Web-gebaseerd management | Ja |
| ARP-inspectie | Ja |
| MIB-ondersteuning | RFC 1213 MIB-II, RFC 1493, RFC 1643, RFC 2863, RFV 2665, RFC 2819, RFC 2737, RFC 2618, RFC 2863, RFC 2933, RFC 3411, RFC 4292, RFC 4836 |
Poorten & interfaces |
| Aantal basis-switching RJ-45 Ethernet-poorten | 16 |
| Type basis-switching RJ-45 Ethernet-poorten | Gigabit Ethernet (10/100/1000) |
| Aantal moduleslots SPF | 2 |
| Console port | RJ-45 |
Netwerk |
| Netwerkstandaard | IEEE 802.3u,IEEE 802.3,IEEE 802.1Q,IEEE 802.3ab,IEEE 802.3z,IEEE 802.3x,IEEE 802.1p,IEEE 802.3az,IEEE 802.1x,IEEE 802.1D,IEEE 802.1w,IEEE 802.3ad,IEEE 802.1s,IEEE 802.1ab |
| 10G support | Nee |
| Port mirroring | Ja |
| Full duplex | Ja |
| Half-duplex | Ja |
| Spanning tree protocol | Ja |
| Verbindingsaggregatie | Ja |
| Auto MDI/MDI-X | Ja |
| VLAN=ondersteuning | Ja |
| Virtuele LAN-functies | Tagged VLAN,Private VLAN,Voice VLAN,Stacked VLAN |
| Aantal VLANs | 4094 |
Data-uitwisseling |
| MAC-adrestabel | 8000 entries |
| Switchingcapaciteit | 36 Gbit/s |
| Throughput | 26.79 Mpps |
| Store-and-forward | Ja |
| Jumbo Frames ondersteuning | Ja |
| Jumbo frames | 10000 |
| Packet buffergeheugen | 4.1 MB |
Beveiliging |
| DHCP-functies | DHCP relay |
| Access Control List (ACL) | Ja |
| IGMP snooping | Ja |
| Statische poort beveiliging | Ja |
| BPDU filtering / bescherming | Ja |
| IP-MAC-Port binding | Ja |
| Ondersteunde beveiligingsalgoritmen | SNMPv3,SSL/TLS,SSH,SSH-2 |
| MAC adres filtering | Ja |
| Authenticatie | Poortgebaseerde authenticatie |
Multicast-functies |
| Multicast-ondersteuning | Ja |
Protocollen |
| GARP VLAN Registratieprotocol (GVRP) | Ja |
Design |
| Kleur van het product | Blauw |
| Materiaal behuizing | Metaal |
| Reset button | Ja |
| LED-indicatoren | Ja |
| DIN rail bevestiging | Ja |
| Ophangsysteem voor aan de muur | Ja |
| Internationale veiligheidscode (IP) | IP30 |
Prestatie |
| Upgraden van firmware mogelijk | Ja |
Energie |
| DC voltage input | 12 - 48 V |
| Vermogensverbruik (max) | 15 W |
Power over Ethernet (PoE) |
| Power over Ethernet (PoE) | Nee |
Eisen aan de omgeving |
| Bedrijfstemperatuur (T-T) | -40 - 75 °C |
| Temperatuur bij opslag | -40 - 85 °C |
| Relatieve vochtigheid in bedrijf (V-V) | 5 - 95 procent |
| Warmtedissipatie | 51.2 BTU/h |
Gewicht en omvang |
| Breedte | 66 |
| Diepte | 107 mm |
| Hoogte | 152 mm |
| Gewicht | 813 g |
Certificaten |
| Certificering | FCC 15 A, CE IEC 60068-2-32, IEC 60068-2-27, IEC 60068-2-6 |
