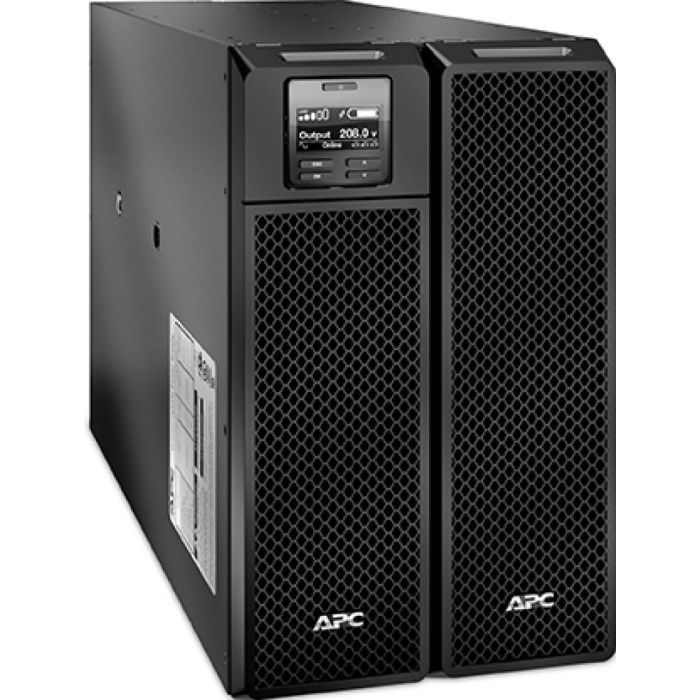

APC Smart-UPS On-Line 10000VA - UPS
208 Volt wisselstroom V - 10 kW - 10000 VA - Ethernet 10100, RS-232, USB - uitgangen: 23 - zwart - voor PN: SRT5KRMTF, SRT5KTF
Artikelnummer: 943793
Productspecificaties
Productomschrijving
Smart-UPS On-Line provides high-density, double-conversion, online power protection for servers, voice / data networks, medical labs, and light industrial applications. The Smart-UPS On-Line is capable of supporting high loads. The device features unity output power factor enabling it to support power-hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with multiple battery packs to meet aggressive runtime demands. The UPS includes an integrated network management card for remote management. The Smart-UPS On-Line provides value to customers with demanding power conditions, including a very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
Productspecificaties
Algemeen |
|
|---|---|
| EAN | 0731304292722 |
| Fabrikantcode | SRT10KXLT |
| Artikelnummer | 943793 |
| Merk | NVT |
| Link naar fabrikant |
Kenmerken |
| UPS-topologie | Dubbele conversie (online) |
| Output power capacity | 10 kVA |
| Uitgangsvermogen | 10000 W |
| Golfvorm | Sinus |
| Ingang operation voltage (min) | 100 V |
| Ingang operation voltage (max) | 275 V |
| Frequentie | 40 - 70 Hz |
| Uitgang operation voltage (min) | 208 V |
| Uitgang operation voltage (max) | 240 V |
| Surge energy rating | 480 J |
| Crest factor | 3:1 |
| EMI/RFI ruisverzwakking | 55 dB |
| Geluidsalarm(en) | Ja |
Poorten & interfaces |
| Stopcontacttypes | NEMA L6-20R,NEMA L6-30R |
| Aantal AC uitgangen | 6 AC-uitgang(en) |
| USB-poort | Ja |
| Aantal Ethernet LAN (RJ-45)-poorten | 2 |
| Bekabelingstechnologie | 10/100Base-T |
| SmartSlot | Ja |
Accu/Batterij |
| Batterijtechnologie | Sealed Lead Acid (VRLA) |
| Batterij capaciteit | 1799 VAh |
| Acculevensduur (max) | 5 Jaar |
| Accu/Batterij oplaadtijd | 1.5 uur |
Design |
| Vormfactor | Tower |
| Kleur van het product | Zwart |
| Type beeldscherm | LCD |
| Internationale veiligheidscode (IP) | IP20 |
Eisen aan de omgeving |
| Bedrijfstemperatuur (T-T) | 0 - 40 °C |
| Temperatuur bij opslag | -15 - 45 °C |
| Relatieve vochtigheid in bedrijf (V-V) | 0 - 95 procent |
| Luchtvochtigheid bij opslag | 0 - 95 procent |
| Hoogte, in bedrijf | 0 - 15000 m |
Inhoud van de verpakking |
| Meegeleverde kabels | USB-kabel |
Certificaten |
| Certificaten van naleving | RoHS |
Gewicht en omvang |
| Breedte | 236 |
| Diepte | 715 mm |
| Hoogte | 432 mm |
| Gewicht | 111000 g |
Verpakking |
| Software-cd | Ja |
| Breedte verpakking | 600 mm |
| Diepte verpakking | 1000 mm |
| Hoogte verpakking | 461 mm |
| Gewicht verpakking | 126000 g |
Logistieke gegevens |
| Producten per pallet | 1 stuk(s) |
| Code geharmoniseerd systeem (HS) | 85078000 |
